CAPPI height value

The configurable height (km) defines the altitude of the cross-section displayed in the image.

Use the Height slider to define the displayed CAPPI height.

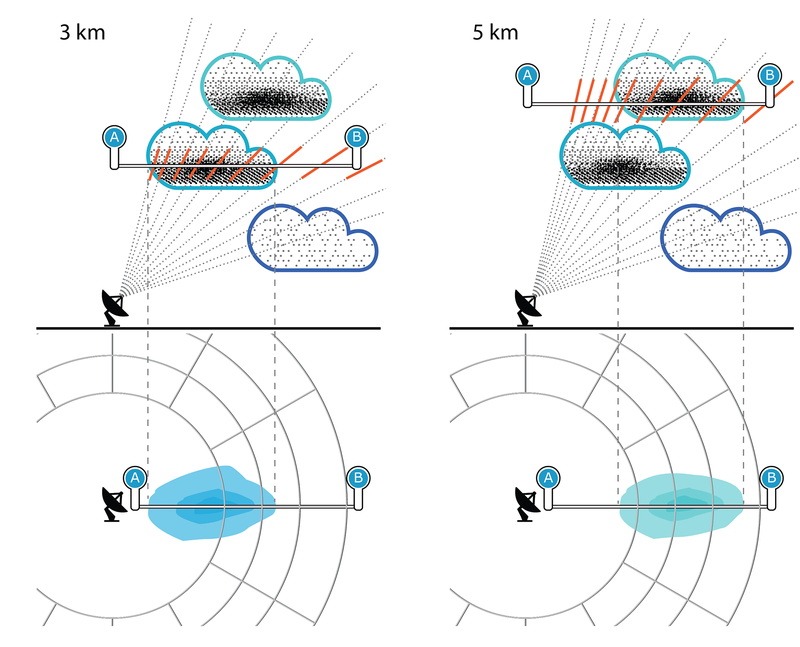

The first of the following images shows the weather displayed in a CAPPI with an altitude of 3 km.

The second image shows the weather displayed in a CAPPI with an altitude of 5 km.

A and B in the image indicate start and end of a vertical cross section through the radar's scan volume.
Figure 1. CAPPI with 3 km and 5 km heights
CAPPI 3 km
